Carbon Steel Plate A516 Gr 70 High-Strength Steel Astm A516 Pressure Vessel Steel Plate

Brand Name : Gnee

Model Number : carbon steel plate

Certification : SGS

Place of Origin : Tianjin, China

MOQ : 1 Ton

Price : $660.00 /Ton

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000 Ton/Tons per Month

Packaging Details : standard export package or as required

Standard : AiSi, ASTM, bs, DIN, GB, JIS

Grade : a516 grade 50,70

Type : Steel Plate, Hot Rolled Steel Sheet

Technique : Hot Rolled

Surface Treatment : Coated

Special Use : High-strength Steel Plate

Width : 600mm-3000mm

Length : As required

Tolerance : ±1%

Processing Service : Bending, Welding, Decoiling, Cutting, Punching, Polishing

Packing : Standard Seaworthy Packing

Contact Now

Carbon Steel Plate A516 Gr 70 High-Strength Steel Astm A516 Pressure Vessel Steel Plate

ASTM A516 is a PVQ carbon steel plate intended primarily for service in welded pressure vessels at moderate or lower temperatures, where notch toughness is important.

Product Name
carbon steel plate astm a516 grade 50 price
Standard
AISI, ASTM, GB, JIS, EN, DIN
Material
Q235B,Q195B,A283 GR.A,A283 GR.C,A285 GR.A,GR.B,
GR,C,ST52,ST37,ST35,A36,SS400,SS540,S275JR, S355JR,
S275J2H,Q345,Q345B,A516 GR.50/GR.60,GR.70,etc
Size
Thickness: 0.1-500mm
Width: 100-3500mm
Length: 2m,2.44m,3m,6m,8m,12m,or rolled,etc
the size of steel sheet can be made according to required.
Surface
Black painted, PE coated, Galvanized, color coated, anti rust varnished, anti rust oiled, checkered, etc
Stock or not
Enough stock
Payment terms
L/C T/T (30%DEPOSIT)
Sample
Provided Freely
Container Size
20ft GP: 5898mm(Length)x2352mm(Width)x2393mm(High)
40ft GP: 12032mm(Length)x2352mm(Width)x2393mm(High)
40ft HC: 12032mm(Lengh)x2352mm(Width)x2698mm(High)
Delivery time
Within 7-10 Working Days

Carbon Steel Plate A516 Gr 70 High-Strength Steel Astm A516 Pressure Vessel Steel PlateCarbon Steel Plate A516 Gr 70 High-Strength Steel Astm A516 Pressure Vessel Steel PlateCarbon Steel Plate A516 Gr 70 High-Strength Steel Astm A516 Pressure Vessel Steel Plate

A516 Grade 55 Chemical Composition
Grade The Element Max (%)
C Si Mn P S
A516 grade 55
Thick <12.5mm 0.24 0.13-0.45 0.79-1.30 0.035 0.035
Thick12.5-50mm 0.26 0.13-0.45 0.79-1.30 0.035 0.035
Thick50-100mm 0.28 0.13-0.45 0.79-1.30 0.035 0.035
Thick100-200mm 0.29 0.13-0.45 0.79-1.30 0.035 0.035
Thick>200mm 0.29 0.13-0.45 0.79-1.30 0.035 0.035

Grade A516 Grade 55 Mechanical Property
Thickness Yield Tensile Elongation
A516 grade 55 mm Min Mpa Mpa Min %
6-50 205 380-515 27%
50-200 205 380-515

23%

Available Sizes

Gnee Steel stocks the following standard sizes , but other sizes may be available for special orders.

GRADE THICKNESS WIDTH LENGTH
55 3/16" – 8" 48" – 120" UP TO 480"
60 3/16" – 8" 48" – 120" UP TO 480"
65 3/16" – 8" 48" – 120" UP TO 480"
70 3/16" – 8" 48" – 120" UP TO 480"

FAQ


Q: Do you provide samples? is it free or extra?
A: Yes, we could offer the sample for free, freight is not included.

Q: How long is your delivery time?
A: Generally it is 3-7 days if the goods are in stock, or 7-10 days if the quantity is bigger than 25tons.

Quality Carbon Steel Plate A516 Gr 70 High-Strength Steel Astm A516 Pressure Vessel Steel Plate wholesale

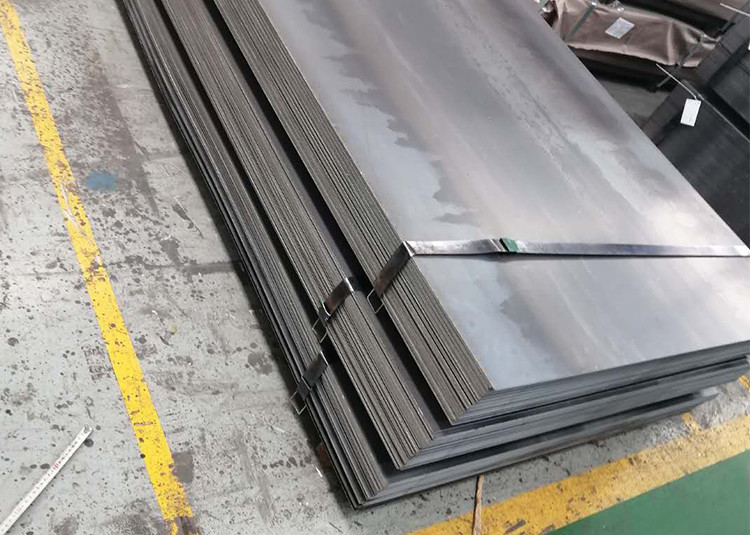

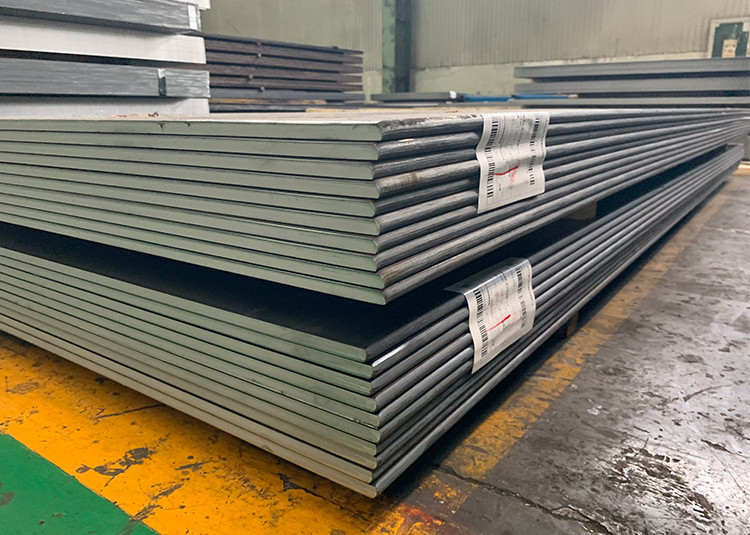

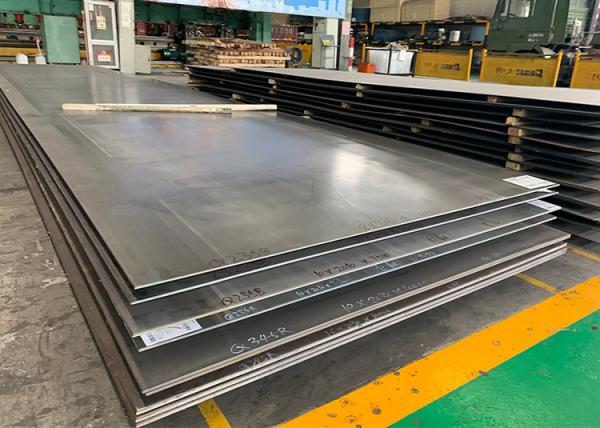

Carbon Steel Plate A516 Gr 70 High-Strength Steel Astm A516 Pressure Vessel Steel Plate Images
